Autel MaxiService EBS301 Electronic Brake Service Tool OBDII/EOBD SCANNER

SKU: EBS301.APW

Availability: Stock in Sydney

$241.99
4 payments of $60.50 with info
Product Description

    Autel MaxiService EBS301 Electronic Brake Service Tool OBDII/EOBD SCANNER



    BUY WITH CONFIDENCE FROM AUSTRALIA SELLER



    GENUINE AUTEL  PRODUCT

    1 YEAR  FREE UPDATE

    2 YEAR AUSTRALIAN WARRANTY - WE ARE ONLY COMPANY TO OFFER 2 YEARS

    AUSTRALIAN VERSION


    34567





    Note:

    Languges:Installed English, French,Spanish;
    For other languages,such as Russian,Germany,Dutch,Italian, etc,please provide your country and SN to us, we will help you to activate it.


    The MaxiService EBS301 Electric Brake Service Tool is specially designed for safe and professional replacement
    of brake pads on an increasing number of modern vehicles. Connecting to the vehicle’s OBDII socket, this tool
    automatically links up with the control module. Disengaging the brake system, it increases safety with the push of
    a button. Eliminating the needs to use expensive OEM diagnostic systems to do the job on electronic systems,
    the tool is a time saver and a money maker!

    2

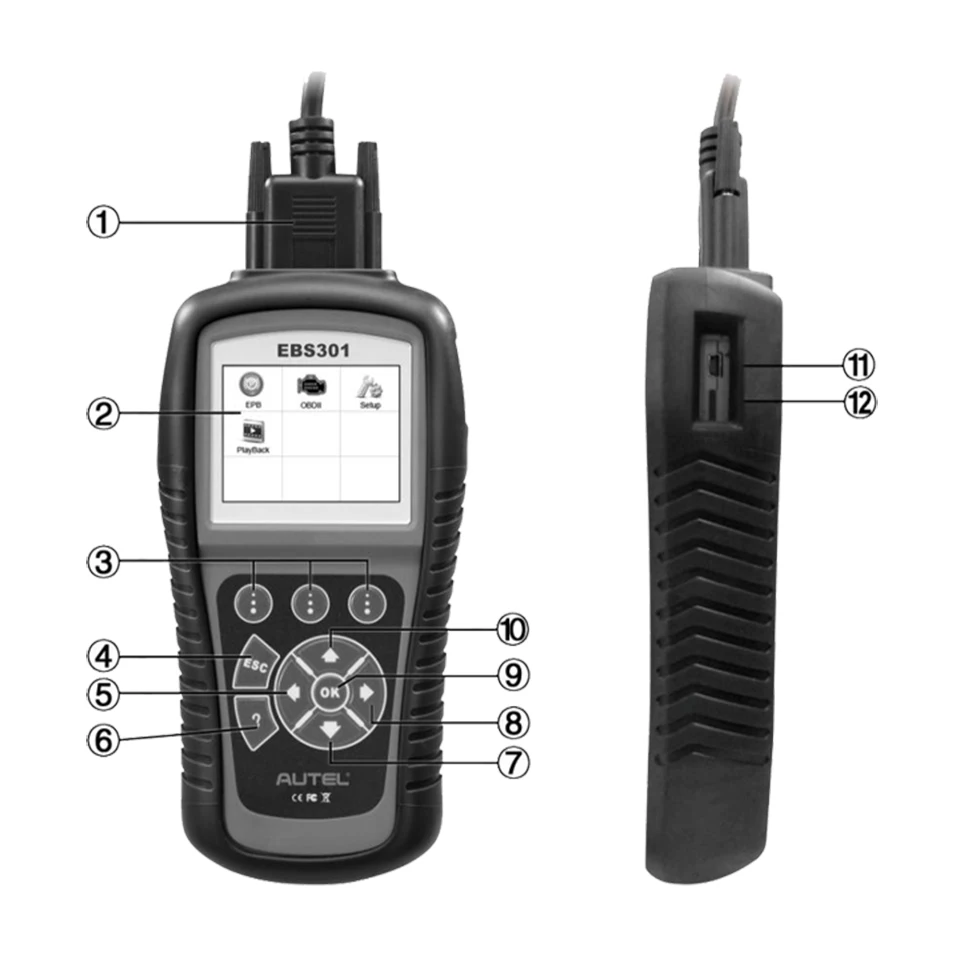

    Tool Description:

    1) CONNECTOR -- Connects the scan tool to the vehicle’s Data Link Connector (DLC).
    2) LCD DISPLAY -- Indicates test results. TFT color display (320 x 240 dpi).
    3) FUNCTION BUTTON – Corresponds with “buttons” on screen for executing commands.
    4) ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the previous screen.
    5) LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
    6) HELP BUTTON -- Provides help information and Code Breaker function.
    7) DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.
    8) RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data.. It is also used to view next trouble code when viewing DTCs.
    9) OK BUTTON -- Confirms a selection (or action) from a menu.
    10) UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.

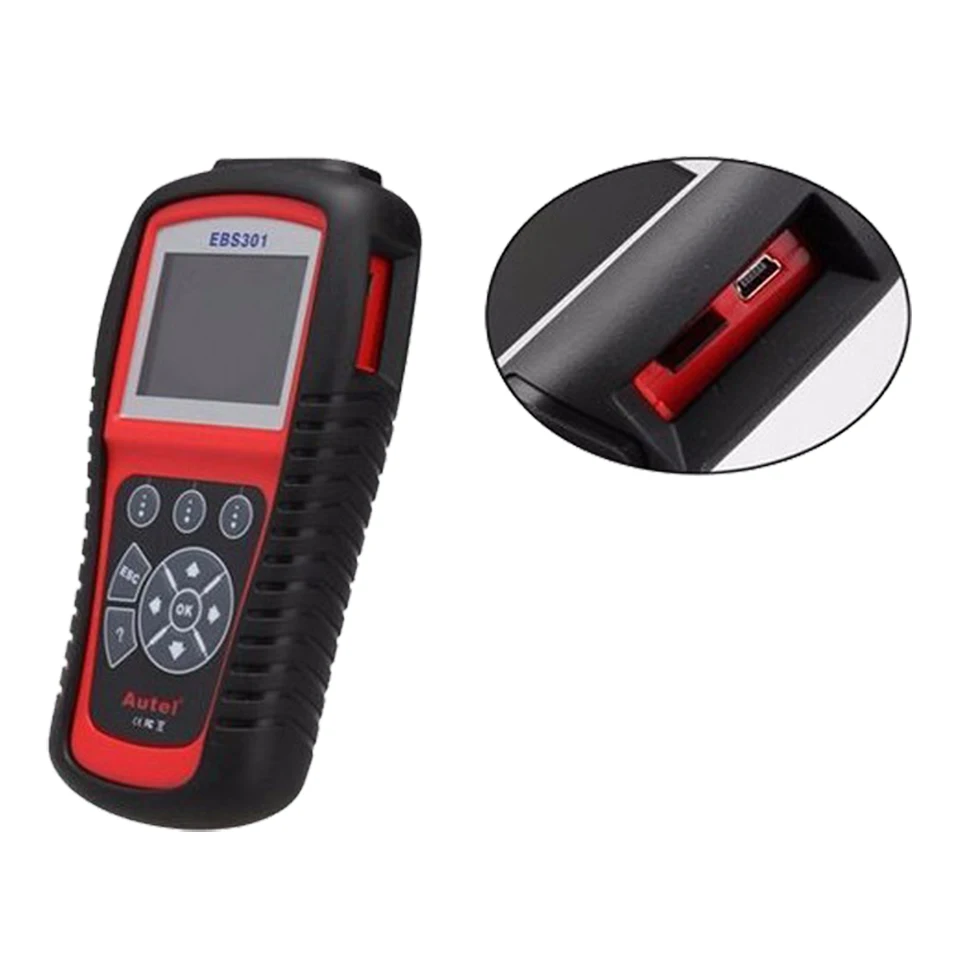

    11) USB CONNECTOR -- Connects the scan tool to the PC for printing.
    12) MICRO SD CARD SLOT – Holds the Micro SD card.



    Feature:

    Multi-brand applications

    Opens and closes the brake pads

    Reads and clears EPB/SBC trouble codes

    Turns off the ECU and brake warning light

    Diagnoses EPB/SBC caliper functionality

    Resets the brake pad thickness required for Audi A8 service

    Complete OBDII/EOBD coverage

    Easy to use with step-by-step on-screen guided instructions

    Increases efficiency and ensures workplace safety

    TFT color screen, user friendly, simple and easy to use

    One year free online software updates

    TF memory card for data backup and software update



    Specifications

    Display

    TFT color display (320 x 240 dpi)

    Operating Temperature

    0 to 60°C (32 to 140 °F)

    Storage Temperature

    -20 to 70°C (-4 to 158 °F)

    External Power

    12.0 to 18.0 V power provided via vehicle battery or adapter

    LengthWidthHeight

    199 mm (7.83”)104.5 mm (4.11”)37.5 mm (1.48”)

    Weight

    0.28kg(without wire) 0.484kg(with wire)




    Product Troubleshooting:


    Vehicle Linking Error:
    A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). You need to do the following to check up:
    Verify that the ignition is ON.
    Check if the scan tool’s connector is securely connected to the vehicle’s DLC.
    Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
    Verify the control module is not defective.

    Operating Error:
    If the scan tool freezes, then an exception occurs or the vehicle’s ECU (Engine Control Unit) is too slow to respond to requests. You need to do the following to reset the tool:
    Reset the scan tool.
    Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.

    Scan tool doesn’t power up:
    If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
    Check if the scan tool’s connector is securely connected to the vehicle’s DLC;
    Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
    Check vehicle battery to make sure it is still good with at least 8.0 volts.

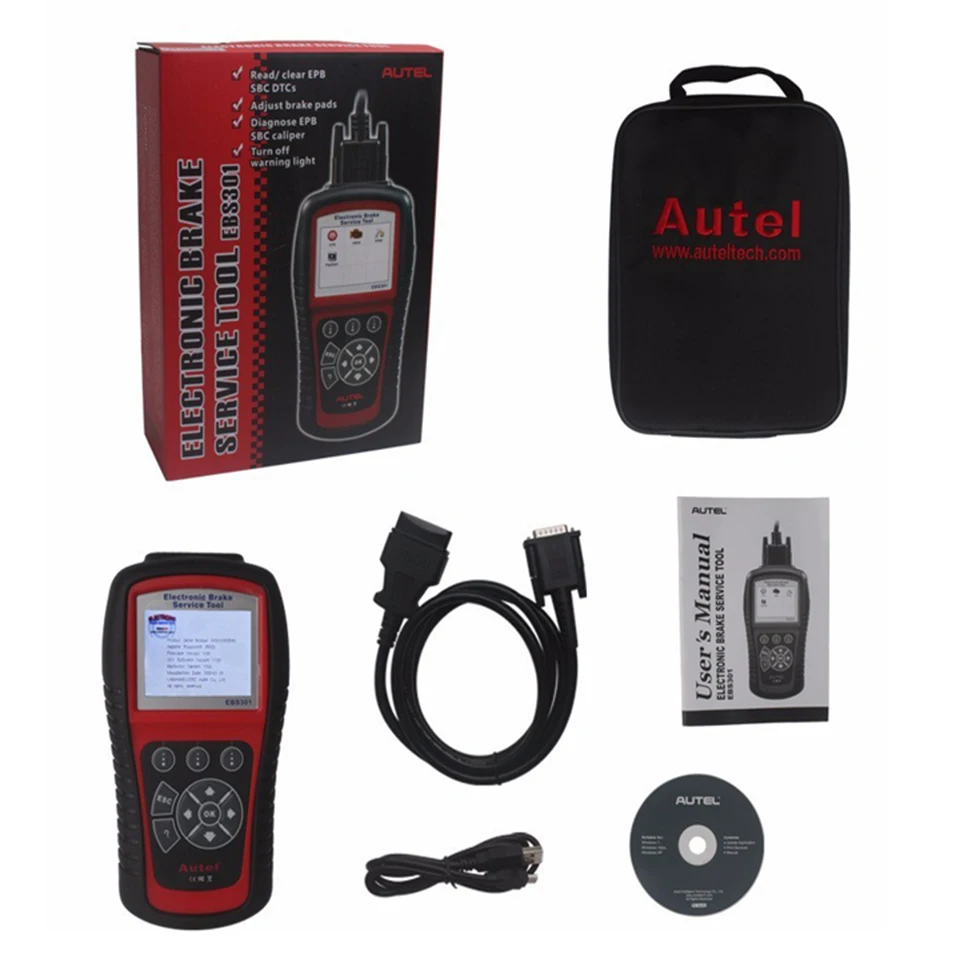

    PACKAGE :



    1 x CD

    1 x OBDII cable

    1 x USB cable

    1 x Micro SD card

    1 x Protective nylon case

    1 x User's Manual
